High speed laminator for e-passports

Ultra High Speed Passport Laminator for Security Foil on Supply Roll

Passport Laminator - Passport Laminating System


  • Reel-to-reel overlay foil lamination - for registered or wallpaper overlay film and overlay patches
  • Alignment of laminate by printed registration mark or by holographic registration mark (optional)
  • Maximum reel diameter: 125 millimetre
  • Throughput: up to 400 passports / hour (only RL120+ and depending on laminate manufacturer)
  • Easy replacement of foil
  • Versions for left and right uncoiling laminates
  • Quick release clamping system for laminate core and take-up-roll
  • for paper and plastic cores
  • Thermal fuse and software control routines to protect against overheating
  • Lock for protection of foil against theft
  • Communication and configuration via PC
  • Automatic passport size adaption (length and height)
  • In-field updates of firmware via USB
  • Laminating time approx. 7 - 30 seconds per passport (depending on foil)
  • Manual or automatic (optional) operation
  • End-Of-Foil detection
  • Three internal counters
  • incl. PC-software for individual settings and communication with laminator

The security film

The laminate is supplied in a roll format suitable for the DILETTA laminator. During lamination, an approximately 50 micron polyester film deposits a 6 to 8 micron tamper evident coating onto the passport page. The coating is available with different features with registered images and unregistered repeating images/features (wallpaper).

Full control of all settings and status

The RL120 laminator is supplied with various software tools to adjust parameters or view the status of the laminator.

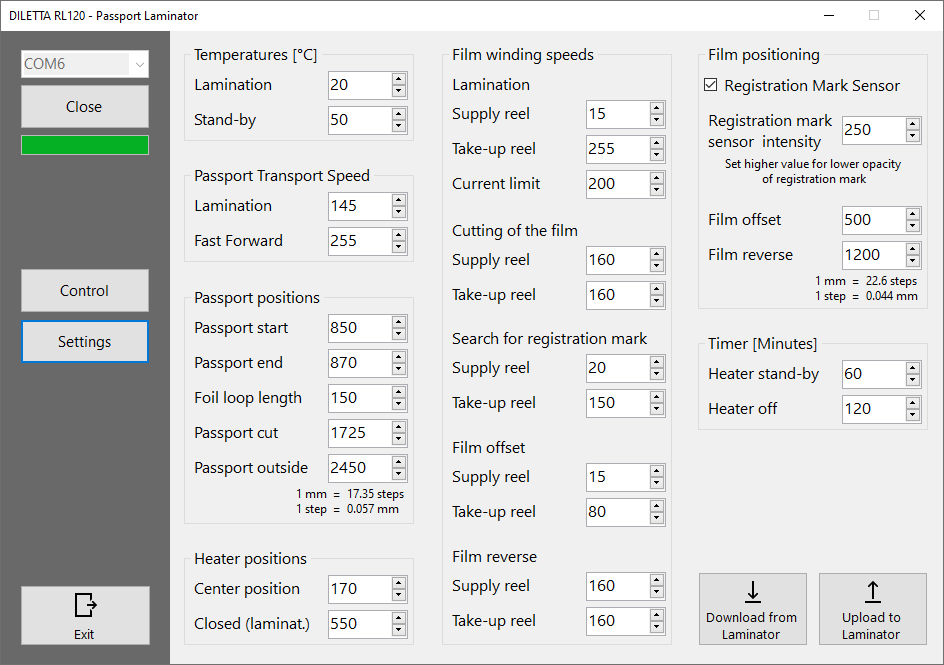

Passport Lamintor - Control Software

Available Features

Hologram or Kinegram®, wallpaper and registered

Optically Variable Devise Features
Micro and nano printing; fine line printing, incl. guilloche or fine line background patterns; hidden imagery, viewable with laser pen; scrambeled indicia; partial demetalized imagery;

Optically Variable Inks
Invisible and visible UV inks; color shifting inks; OVD inks; water soluable inks; polarized color shifting inks; energy converting inks; Advantage color shifting orange to green or transparent.

The information contained herein is subject to change without notice.
DILETTA shall not be liable for technical or editorial errors or omissions contained herein.

DILETTA is a registered trademark of DILETTA Maschinentechnik GmbH, Germany
RL120 is a trademark of DILETTA Maschinentechnik GmbH, Germany
Kinegram is a registered trademark of OVD Kinegram AG, Switzerland

For more information, e-mail us at info@diletta.com.

Made in Germany
