Not every print looks the same

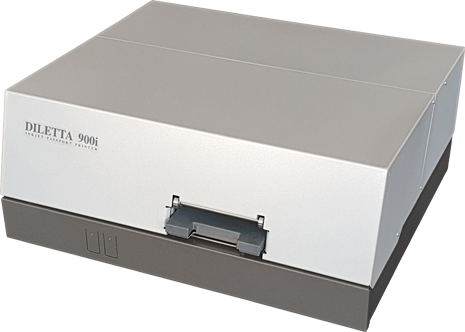

The print of the DILETTA 900i looks different, it is premium quality
The DILETTA 900i sets high targets when it comes to printing passportss. Whether on standard paper or directly on passport security paper - this printer is a real expert. Its true-to-life colours are clean, vibrant and reliable for many years. All inks have been certified and approved by an accredited German institute.
Compact installation space
The internal structure of the DILETTA 900i has been designed to allow compact size and full front operation. It requires only a limited installation space, so it can be freely installed. A special design of the internal structure made it possible to integrate the functions in a compact and simple square sheet shape without wasting space. The compact size allows it to be installed anywhere, for example on a long side of a PC. Due to the complete operation from the front and the flat top, the top can also be used as a place for passports.
Easy and secure handling of the passport
The full front operation allows easy handling of the passport. The operator inserts the opened passport at the front of the printer and receives the printed and chip-encoded passport also at the front of the printer. The patented passport transport system ensures the safe transport of the passport without smearing or damaging the page - regardless of the passport thickness.
The new Power Printer. Professional down to the detail.
Multi functional - it prints in black and white or colour, onto a wide range of paper weights as well as into passports or other travel documents. You will enjoy its flexibility for a large number of applications. The extra large ink storage tanks will support efficient operation.
RFID module for e-passports.
The big increase in international travel activities and the need of adequate security measures require fast control of secure travel documents. Individual security features become international standards such as digitally printed photographs, security ink, machine-readable code lines, biometric data as contained in 2-dimensional barcodes (fingerprint, eyescan), and contactless RFID chips. All these features are already supported by DILETTA 900i series.
The integrated RFID module supports all chips and operating systems. Its in-field upgradeable firmware makes the RFID-module a secure and future-proof investment, providing both flexibility and fast time to market for new applications as well as minimum risk linked to contactless technology standards evolution.
Integrated RFID Technology
for e-passports (optional)
Exceptional speed
The DILETTA 900i produce mono and colour passport prints at outstanding speeds, using impressive technology that combines bi-directional printing, high speed passport feeding for passports up to 100 pages and state-of-the art print head design.
Delivers up to passports per hour.
Colour Print Perfection.
For those who rely on top print quality DILETTA 900i offers an excellent choice. Each passport page will show laserprinted contours and clearly defined shades. A first-class printing quality on all security type of papers. Not only the printing of the machine-readable lines and the visual zones are of top quality but there is also the impressive colour photograph printing. This is achieved by the high performance of the print head which has a resolution of up to 4800 dpi (dots per inch). Two parallel installed print heads manage the job DILETTA 900i sets the professional standard for colour printing in the passport issuing office.
Plenty of ink available - The printer with a storage tank.
DILETTA 900i cares for the needs of a busy passport issuing office. The specially developed individual ink tanks can be exchanged easily independent and make running costs extremely economical for both mono and colour prints. The DILETTA 900i comes standard with 156 ml high capacity ink tanks (78.4 ml for black and 26.0 ml for each colour ink tank), allowing them to easily cope with large volume printing demands.
Thick or thin documents? Easy!
The DILETTA 900i Passport Printer comes with a patented passport transport system which can handle a wide range of different print requirements: It can print directly onto every page of a 4 up to 100 pages passport without any adjustment. The DILETTA 900i also handles a variety of print material such as thin paper through to carton box material, security paper, coated paper, Teslin, inkjet coated foils and films (OHP), glossy photo paper. All print results are of a high quality with brilliant colours and crisp, black text.
It is good to have a good connection
DILETTA 900i comes standard with a Hi-Speed USB 2.0 port and an integrated 10/100base-TX Ethernet adapter.
The integrated Hi-Speed USB Hub connects your printer and all optional hardware, like RFID Contactless Chip Module, Camera System, OCR/Barcode Reader or for example a Software Hardlock for your software application, to your PC.
The Ethernet adapter connects your printers directly to the network allowing users of different operating systems to share printer resources. The Ethernet adapter is the easy way of connecting a DILETTA 900i passport printer to an Ethernet network. Instead of attaching your passport printer locally to the PC, use the Ethernet adapter and free computing resources. The main benefit is that it allows you to share your printer with other workgroup members, and compared to a PC it will handle printing faster, more reliably and more effectively.
Easy configuration of all Ethernet settings via integrated Web Interface. Just open your Internet Explorer and access the printer like a conventional website by typing the printers IP address.
Options
Customize your passport printer.RFID Contactless Chip Encoder
You can equip your DILETTA 900i passport printer series with an integrated contactless chip reader / writer. So you can write in one-pass the holders' information during the print process. This avoids writing of wrong information into the passport during a two step process, may caused by an operator mistake. The module supports all ISO 14443 type A and ISO 14443 type B chips with a transfer rate up to 848 kBit/s on Air Interface.
Camera System
A camera system (camera and LED lighting) is optionally integrated into the DILETTA passport printer. This enables to print the machine readable lines exactly to the page edge and the holder's data to the pre-printed text fields. The DILETTA camera system is connected via the printer's internal USB hub.
Barcode Reader
To avoid mixing up passport numbers you can integrate a barcode reader software module for one dimensional barcodes inside your DILETTA passport printer. Before starting the print job the system captures the pre-printed passport number and transfers it to the PC.
OCR Reader
To avoid typing wrong passport serial numbers into your system you can integrate an OCR reader software module inside your DILETTA passport printer. Before starting the print job the system automatically recognizes and captures the pre-printed passport number with the OCR (optical character recognition) module and transfers it to the connected PC.
Specifications
Configuration | DILETTA 900i Series |
Dimensions | Width x Depth x Height | 500 x 435 x 210 mm |
Weight | approx. 15 kg |
Printer Driver | |
Windows 10 / 8.1 / 8 (32 & 64-Bit Versions) | yes |
Windows 7 (32 & 64-Bit Versions) | yes |
Linux | with generic PCL3 driver |
Mac OSX | with generic PCL3 driver |
PDL / Printer Languages | |
HP PCL 3 Enhanced | yes |
Interfaces | |
Hi-Speed USB 2.0 port | yes |
10/100base-TX Ethernet adapter | yes |
Media Types (ICAO Doc. 9303 part 1-3) | |
Machine Readable Passport (MRP) | yes |
Machine Readable Visa (MRV) | yes, with optional adapter |
Machine Readable ID-Cards (MRID) | yes, with optional adapter (only paper) |
RFID Feature | |
Integrated RFID Module - ISO/IEC 14443 type A/B | optional |
Printing Speed (in continuous print mode) | |
Normal print quality | up to 270 passports per hour |
Print Head | |
Nozzles count | 6272 (1568 x 4) |
Resolution | 1200 nozzles per inch, per color |
Operating Environment | |
Temperature | 15 to 35ºC (59 to 95ºF) |
Humidity | 20 to 80% RH with no cond. |
Power | |
Input Voltage | 100 to 240 VAC, 50 / 60 Hz |
Power Consumption | |
Active | 14 W |
Stand-by | 4.5 W |
Switched off | 0.7 W |

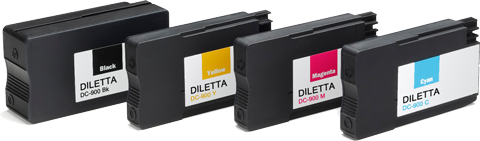

Available Cartridges for DILETTA 900i
Fully Pigmented Ink
Name | Type | Capacity |
DC-900 BK / OCR-Black Colour Ink Cartridge | Pigment Ink | 78.4 ml |
DC-900 Y / Yellow Colour Ink Cartridge | Pigment Ink | 26.0 ml |
DC-900 M / Magenta Colour Ink Cartridge | Pigment Ink | 26.0 ml |
DC-900 C / Cyan Colour Ink Cartridge | Pigment Ink | 26.0 ml |
Alternatively:
Name | Type | Capacity |
DC-900 BK & UV-Green-Blue/ OCR-Black and UV-Blue Colour Ink Cartridge | Pigment & UV Ink | 78.4 ml |
DILETTA inks are compliant with following standards:
ISO 1073/II-1976 | ISO 1831 - 1980 | DIN 66008 | DIN 66009 | DIN 66223 | ICAO 9303 Part 1-3
