DILETTA VisaPrinter Barcode

Full automatic visa printing system with integrated barcode reader

Stunning quality, laser speed

Enjoy superior quality photo prints with fine detail and smooth colour gradations, thanks to tiny 1pl ink droplets and a high 9600x2400dpi* print resolution. The 5 Single Ink system includes a dye-based black that brings extra depth and contrast to photos.

Print documents perfectly at up to 31ppm in mono or 24ppm in colour, single or double-sided. Whether conventional paper, visa labels or security paper, this printer handles it all.

Single Ink

All 5 Single Ink tanks can be replaced separately, minimising ink wastage and maximising savings. A smart LED light flashes to alert you when a colour is running low or needs replacement.

Integrated Barcode Reader

The VisaPrinter Barcode comes with an integrated Barcode Reader supporting conventional barcodes as well as 2D-barcodes like: PDF417 or others. Before printing a visa label the integrated barcode reader captures the serial number of document. This avoids mistype of the serial number by the operator and increases the output. The reading time per barcode is less than one second.

Easy connection via Plug'n'Play compatible USB drivers. The VisaPrinter Barcode supports HID keyboard emulation or COM-Port emulation.

The best results with maximum ease.

The DILETTA VisaPrinter makes great printing simplicity itself. A simple to install plug-and-play printer driver, straightforward driver software and clear, comprehensive on-screen operating and maintenance guides ensure maximum ease of use every step of the way. There's also a print cancel button on the control panel allowing instant cancellation of your print job.

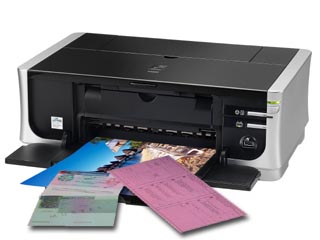

VisaPrinter Barcode - Visa Printer with integrated Barcode Reader

Schengen visa label with pre-printed barcode

The Visa Printer supports full automatic capturing of serial number via the integrated barcode reader and high volume output of visa labels.

Designed for simple integration.

A sharp new design that's sure to fit easily on any desktop. Comprehensive compatibility for embassy office users who require high performance printing of documents, visa or a wide range of security papers.

High Speed Paper Handling

Incorporating DILETTA's high speed continuous feed paper mechanism the DILETTA VisaPrinter now also features paper sizes from A4, via visa label size down to smallest Credit Card size (54 x 86mm). The max. 150 sheet auto paper feeder and max. 150 sheet paper cassette ensures that multiple copies can be printed not only at high speed, but with maximum ease and efficiency.

Key Features

Integrated barcode reader for highest accuracy
Auto sheet feeder for visa size documents
Print photos up to 9600x2400dpi*,
Print documents, mono and colour, up to 31/24ppm
Print double-sided
Faster paper loading and time to first print
Simple to set up and use with Plug-and-Play install
Front panel Cancel Button for printer-side control

Specifications

Configuration	DILETTA VisaPrinter Barcode

Dimensions
Width x Depth x Height	445 x 303 x 184 mm³
Weight	approx. 7 kg

Printer Driver
Windows XP / 2000	yes
Windows 7 / Vista	yes

Interfaces
Printer	Hi-Speed USB 2.0 port
Barcode Reader	Hi-Speed USB 2.0 port

Resolutions
Printer	up to 9600 x 2400 dpi
Barcode Reader	1280 x 960 pixel

Paper Handling
Media Size	Visa Label, A4, B5, A5, Letter, Legal, Credit Card (54 x 86mm)
Media Input	Rear Tray & Cassette, max. 150 sheets each
Borderless Printing	yes

Supported Barcodes
One Dimensional Codes	Code 39, Code 93, Code 128, UPC/EAN/JAN, Code 2 of 5, Code 11, Codabar, MSI Plessey, GS1 DataBar, Telepen, Trioptic
Two Dimensional Codes	QR Code, Data Matrix, Aztec Code, Maxicode, Codablock, Composite Code, KIX Code
PDF	PDF417

Operating Environment
Temperature	5 to 35ºC (41 to 95ºF)
Humidity	15 to 80% RH with no cond.
Acoustic Noise Levels	Printing: Approx. 34.5 dB(A) in best quality mode

Power
Input Voltage	100 to 240 VAC, 50 / 60 Hz

Power Consumption
Maximum	13 W
Stand-by	Approx. 1.2 W
Switched off	Approx. 1.0 W

Design and specifications are subject to change without notice.
DILETTA does not assume any liability for completeness or accuracy in form and contents.

DILETTA is a registered trademark of DILETTA GmbH.
CANON is a registered trademark of CANON Inc.
Microsoft and Windows are registered trademarks of Microsoft Inc.
Apple and Macintosh are registered trademarks of APPLE Inc.

For more information, e-mail us at info@diletta.com.
